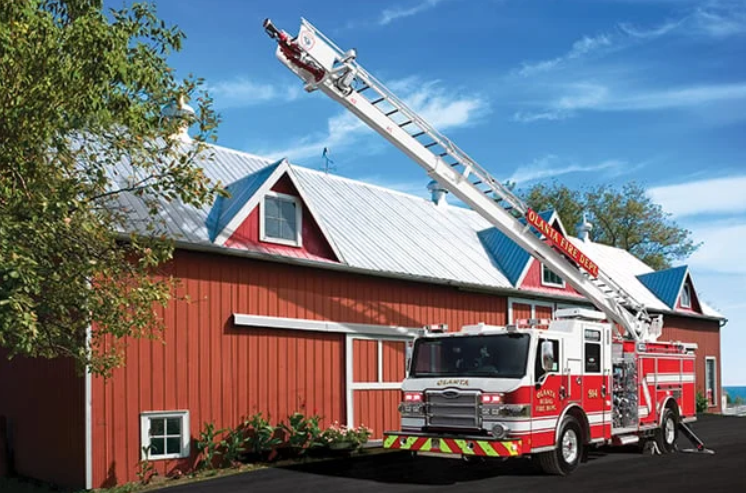

Pierce Heavy-Duty Sky Boom
Pierce’s Sky-Boom is the smart choice for communities that need aerial firefighting power but also demand value for their investment. This compact, lightweight workhorse is custom built to deliver everything you expect from Pierce.
The Pierce Sky-Boom, in your choice of 55' or 61' reach (16.76m or 18.59m), delivers an unrestricted 500 lb (226.8kg) dry tip load rating and a 250 lb (113.4kg) tip load while flowing 1,000 gpm (3,785 L/m) of water. And you can travel where you’re needed with the Pierce Sky-Boom: It is the lowest of any elevated boom apparatus with its unique fold-down handrails, resulting in an overall travel height of only 10'8" (3.25m). Fixed handrails are also available which bring the overall travel height up slightly to 11'3" (3.45m).
One set of A-style stabilizers with a 12'10" (3.91m) spread provide rock-solid strength and easy set-up. The aerial ladder features wide steps, spaced 14" (36cm) apart for safe, quick ascension. Heavy-duty and serrated rung covers provide the ultimate traction and visibility.
Specifications
| Custom Chassis | Enforcer™, Impel®, Velocity® | Rear Axle | Single or tandem |
| Stabilizer Spread | 12’10” (3.91m) | Stabilizers | 1 set of A-style |
| Structural Ladder Warranty | 20-yr |
| Flow Capacity | 1,000 gpm (3,785 L/m) | Hosebed Capacity | Varies depending on configuration |
| Ladder Complement | Minimum of 48′ | Ladder Reach | 55′ or 61′ (16.76m or 18.59m) Vertical / 45’5″ or 51′ (13.84m or 15.55m) Horizontal |
| Operating Range | -5° to 85° | Payload Capacity | 500 lb dry / 250 lb wet |
| Pump Range | Waterous, Hale, Darley Midship, PTO | Tank | Varies depending on configuration |
| Wind or Ice Ratings | Up to 20 mph (32km/hr) winds and 1/4″ (.64cm) of ice |
| Foam Systems | HERCULES™ CAFS Husky™ Industrial Husky™ 12 Husky™ 3 |
Pump | PUC™ |
| Suspension | TAK-4® Independent Front Suspension TAK-4® Independent Rear Suspension |
