Pierce Ladders

pierce ladders

Pierce Ladders

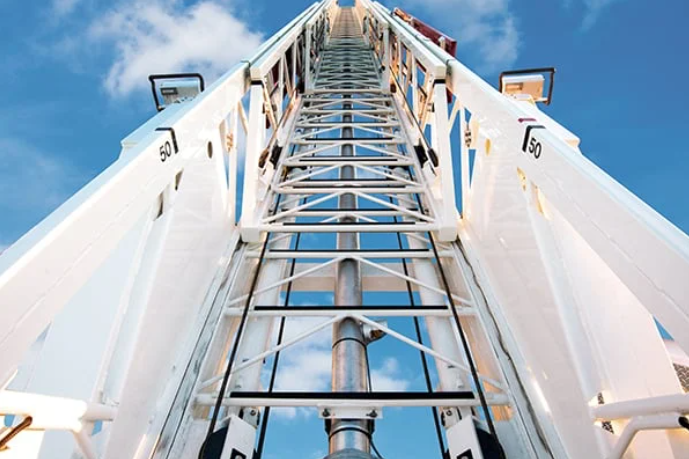

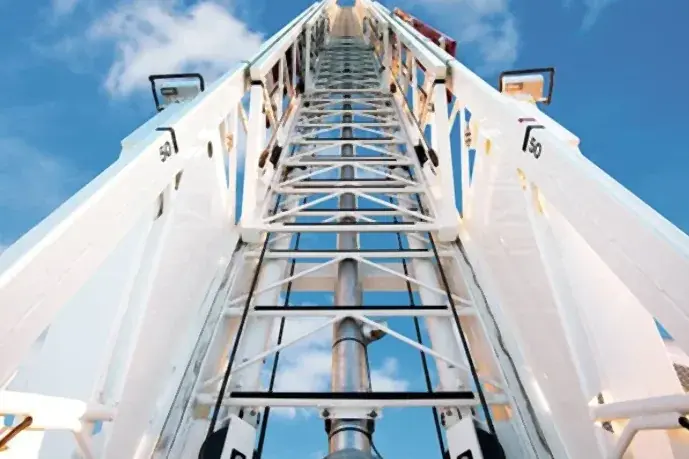

 The Pierce aerial ladder can be counted on in the riskiest of situations, like flowing water in resilient winds, on uneven terrain and in the middle of dense ice storms. Pierce ladders are built tough. You won’t be let down, no matter what circumstance you find yourself in.

Our egress is easy to replace. If it’s ever damaged on a call, you simply replace it with a new one, rather than replacing the entire fly section. Climb with confidence. We’ve routed all wires inside the sealed base rails. No matter where the ladder is positioned, you have easy access onto & off the turntable.

Compare Aerial Ladders

Nine configurations — from 75' single axle to 107' tillers. Select a model to review its full specifications.

Ascendant® 107' Heavy-Duty Aerial Ladder — Single Rear Axle

The configuration that redefined the single rear axle market — 107' of vertical reach and 100' of horizontal reach on a 33,500 lb rear axle.

  • Vertical Height 107'
  • Horizontal Reach 100'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Operating Range -10° to 77°
  • Stabilizers 3 — H-style + 1 down-jack
  • Stabilizer Spread 18'
  • Rear Axle Single — 33,500 lb
  • Tank Capacity Up to 500 gal
  • Ladder Material 100K psi steel
  • PUC™ Available Yes
  • Ladder Warranty 20-year structural

Ascendant® 107' Heavy-Duty Aerial Ladder — Tandem Rear Axle

Same Ascendant performance on a tandem axle — significantly lighter than comparable aerials with a rear axle rating of only 44,000 lb.

  • Vertical Height 107'
  • Horizontal Reach 100'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Operating Range -10° to 77°
  • Stabilizers 4 — H-style + 2 down-jacks
  • Stabilizer Spread 16'
  • Rear Axle Tandem — 44,000 lb
  • Tank Capacity Up to 750 gal
  • Ladder Material 100K psi steel
  • PUC™ Available Yes
  • Ladder Warranty 20-year structural

Ascendant® 107' Heavy-Duty Tiller Aerial Ladder

Tractor-drawn configuration for maximum maneuverability — 60° jack-knife capability and 4,000 lb weight reduction over comparable tillers.

  • Vertical Height 107'
  • Horizontal Reach 100'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Operating Range -10° to 77°
  • Stabilizers 2 — H-style
  • Stabilizer Spread 17'
  • Jack-Knife Angle 60°
  • Tank Capacity Up to 300 gal
  • Ladder Material 100K psi steel
  • PUC™ Available Yes
  • Ladder Warranty 20-year structural

Ascendant® 102' Heavy-Duty Tiller Aerial Ladder

Ascendant-style tractor-drawn aerial with a 102' reach — no fixed waterway configuration for departments prioritizing compartmentation and reach.

  • Vertical Height 102'
  • Horizontal Reach 95'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Operating Range -10° to 77°
  • Stabilizers H-style
  • Ladder Material 100K psi steel
  • Ladder Warranty 20-year structural

105' Heavy-Duty Steel Aerial Ladder

Proven tandem-axle workhorse — 750 lb tip load in 50 mph winds with 1,000 gpm flow and a 20-year structural warranty.

  • Vertical Height 105'
  • Horizontal Reach 100'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,000 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Operating Range -8° to 75°
  • Stabilizers 4 — 2 sets H-style
  • Stabilizer Spread Up to 16'
  • Rear Axle Tandem
  • Tank Capacity Up to 750 gal
  • Ladder Material Heavy-duty steel
  • PUC™ Available Yes
  • Ladder Warranty 20-year structural

100' Heavy-Duty Steel Aerial Ladder

Tandem-axle steel ladder with short-spread H-style stabilizers and an interlock system that prevents rotation on the short-set side.

  • Vertical Height 100'
  • Horizontal Reach 95'
  • Tip Load (Dry / Wet) 750 lb / 500 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,000 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Stabilizers H-style (short-spread)
  • Rear Axle Tandem
  • Ladder Material Heavy-duty steel
  • Ladder Warranty 20-year structural

100' Heavy-Duty Aluminum Aerial Ladder

Industry-leading 750 lb rated payload on a lightweight aluminum structure with 1,500 gpm flow capacity.

  • Vertical Height 100'
  • Horizontal Reach 95'
  • Tip Load (Dry) 750 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 35 mph / ¼" ice
  • Stabilizers H-style
  • Rear Axle Single or Tandem
  • Ladder Material High-strength aluminum
  • Ladder Warranty 20-year structural

100' Heavy-Duty Low Profile Steel Aerial Ladder

As low as 10' 10" overall height with waterway — same 750 lb tip load and 1,500 gpm flow in a station-friendly package.

  • Vertical Height 100'
  • Horizontal Reach 95'
  • Tip Load (Dry) 750 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 35 mph / ¼" ice
  • Overall Height 10' 10" (w/ waterway)
  • Stabilizers H-style
  • Rear Axle Single or Tandem
  • Ladder Material Heavy-duty steel
  • Ladder Warranty 20-year structural

75' Heavy-Duty Steel Aerial Ladder

Compact heavy-duty steel ladder with 500 lb tip load and 1,000 gpm flow — ideal for departments with tighter station bays and narrower streets.

  • Vertical Height 75'
  • Tip Load (Dry) 500 lb
  • Flow Capacity 1,000 gpm
  • Wind & Ice Rating 50 mph / ¼" ice
  • Nozzle Sweep 180° horizontal
  • Stabilizers H-style
  • Rear Axle Single
  • Ladder Material Heavy-duty steel
  • Ladder Warranty 20-year structural

75' Heavy-Duty Aluminum Aerial Ladder

Impressive 750 lb dry tip load on a lightweight aluminum frame with 1,500 gpm flow, 2.5:1 structural safety factor, and removable egress.

  • Vertical Height 75'
  • Tip Load (Dry) 750 lb
  • Equipment Allowance 100 lb
  • Flow Capacity 1,500 gpm
  • Wind & Ice Rating 35 mph / ¼" ice
  • Safety Factor 2.5:1 structural
  • Stabilizers 1 set H-style
  • Rear Axle Single
  • Egress Removable
  • Ladder Material High-strength aluminum
  • Ladder Warranty 20-year structural
